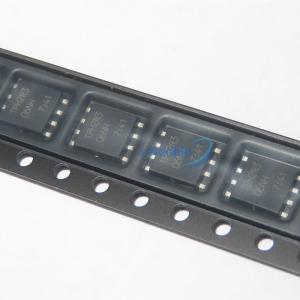

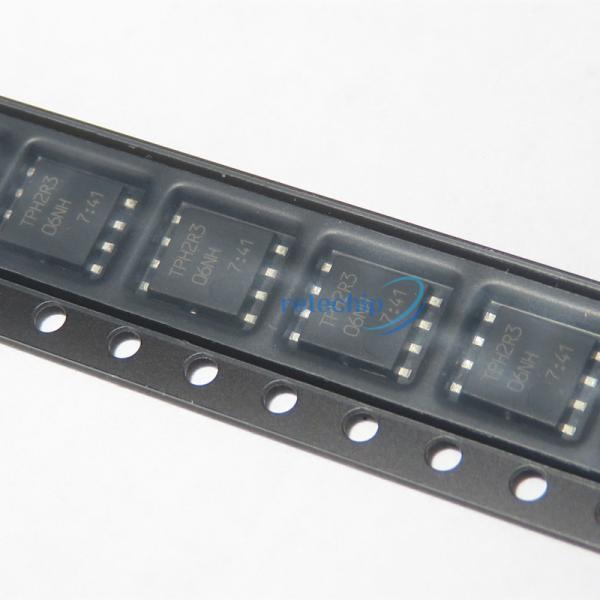

Mosfet Power Transistor TPH2R306NH1

Name: Mosfet Power Transistor TPH2R306NH1
Brand: Toshiba
Price: 1 USD

China Mosfet Power Transistor TPH2R306NH1 wholesale

Brand Name : Toshiba

Model Number : TPH2R306NH1,LQ

Place of Origin : Original

MOQ : 10pcs

Price : Negotiate

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000pcs Per Mouth

Delivery Time : 3-5work days

Packaging Details : 10000pcs

Type : MOSFET

Description : UMOS8 SOP-ADV(N) RDSon=2.3mohm(max)

Package : DFN5X6

Packaging : tape& Box

Warranty : 90Days After Shipping

Shipping by : DHL\UPS\Fedex\EMS\HK Post\TNT

Contact Now

Mosfet Power Transistor TPH2R306NH1,LQ Toshiba Automotive 190A 60V 1.9 MOhms U-MOS

Applications

• High-Efficiency DC-DC Converters

• Switching Voltage Regulators

• Motor Drivers

Description

Toshiba Automotive U-MOSVIII-H Power MOSFETs are 100V N-channel power MOSFETs ideal for

automotive applications. They feature low on-resistance with proprietary technology using a Cu

connector. They have a narrowed gate threshold voltage range of 2.5V to 3.5V, which reduces

switching time tolerance.

Features

(1) High-speed switching

(2) Small gate charge: QSW = 26 nC (typ.)

(3) Small output charge: Qoss = 91 nC (typ.)

(4) Low drain-source on-resistance: RDS(ON) = 1.9 m Ω (typ.) (VGS = 10 V)

(5) Low leakage current: IDSS = 10 µA (max) (VDS = 60 V)

(6) Enhancement mode: Vth = 2.0 to 4.0 V (VDS = 10 V, I D = 1.0 mA)

Specifications

Product Attribute	Attribute Value
Manufacturer:	Toshiba
Product Category:	MOSFET
Technology:	Si
Mounting Style:	SMD/SMT

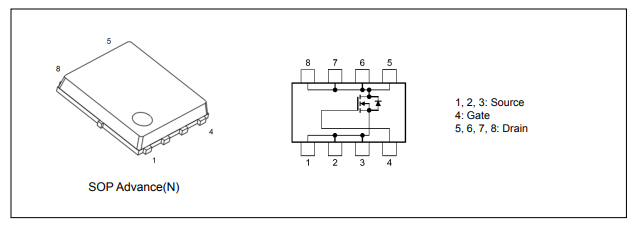

Package / Case:	SOP-8
Transistor Polarity:	N-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	60 V
Id - Continuous Drain Current:	190 A
Rds On - Drain-Source Resistance:	1.9 mOhms
Vgs - Gate-Source Voltage:	- 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage:	4 V
Qg - Gate Charge:	72 nC
Maximum Operating Temperature:	+ 150 C
Pd - Power Dissipation:	170 W
Channel Mode:	Enhancement
Series:	UMOS VIII-H
Packaging:	Reel
Configuration:	Single
Fall Time:	16 ns
Product Type:	MOSFET
Rise Time:	9.9 ns
