Switching Regulator IC KA3525A Power Management IC SMPS Controller Chip

Name: Switching Regulator IC KA3525A Power Management IC SMPS Controller Chip
Brand: onsemi / Fairchild
Price: 1 USD

China Switching Regulator IC KA3525A Power Management IC SMPS Controller Chip wholesale

Brand Name : onsemi / Fairchild

Model Number : KA3525A

Place of Origin : Original

MOQ : 10 pcs

Price : Negotiate

Payment Terms : T/T, Western Union, MoneyGram,Google pay

Supply Ability : 30000pcs Per Mouth

Delivery Time : 1-2work days

Packaging Details : 25 Pcs/Reel

Product Category : Switching Controllers

Description : Switching Controllers SMPS Controller

Certification : Original Factory Pack

Warranty : 90 Day

Shipping by : DHL\UPS\Fedex\EMS\HK Post\TNT

Unit Weight : 0.038801g

Contact Now

Switching Regulator IC KA3525A Power Management IC SMPS Controller Chip

Specifications

Product Attribute	Attribute Value
Manufacturer:	onsemi
Product Category:	Switching Controllers
Number of Outputs:	2 Output
Switching Frequency:	430 kHz
Duty Cycle - Max:	49 %
Input Voltage:	40 V
Output Voltage:	5 V
Output Current:	500 mA
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 70 C
Mounting Style:	Through Hole
Package / Case:	DIP-16
Brand:	onsemi / Fairchild
Series:	KA3525A
Subcategory:	PMIC - Power Management ICs
Type:	SMPS Controller

Description

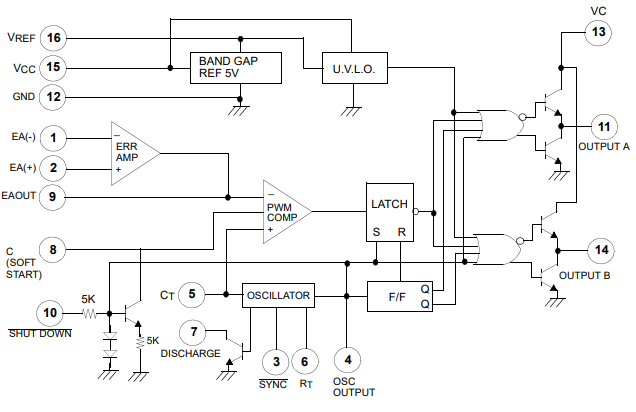

The KA3525A is a monolithic integrated circuit that Included all of the control circuit necessary for a pulse width modulating regulator.There are a voltage reference, an error amplifier, a pulse width modulator, an oscillator,under-voltage lockout, soft start circuit, and output drivers in the chip

Switching Regulator IC KA3525A Power Management IC SMPS Controller Chip

Features

•Internal Soft Start
•Deadtime Control
•Under-Voltage Lockout
